Depending parameters
In the following we show how to link parameters in the same model or
among different models, and how to make a paramter depending on other
parameters according to a mathematical expression.
Example: linked paramters for EBL
import warnings
warnings.filterwarnings('ignore')
import jetset
print('tested on jetset',jetset.__version__)
tested on jetset 1.3.0rc9
from jetset.jet_model import Jet
from jetset.template_2Dmodel import EBLAbsorptionTemplate
from jetset.model_manager import FitModel
my_jet = Jet(electron_distribution='lppl', name='jet_flaring')
my_jet.parameters.z_cosm.val = 0.01
ebl_franceschini = EBLAbsorptionTemplate.from_name('Franceschini_2008')
composite_model = FitModel(nu_size=500, name='EBL corrected')
composite_model.add_component(my_jet)
composite_model.add_component(ebl_franceschini)
composite_model.show_pars()
composite_model.link_par(par_name='z_cosm', from_model='Franceschini_2008', to_model='jet_flaring')
v=0.03001
my_jet.parameters.z_cosm.val = v
assert (composite_model.Franceschini_2008.parameters.z_cosm.val==v)
assert (composite_model.Franceschini_2008.parameters.z_cosm.linked==True)
composite_model.composite_expr = '%s*%s'%(my_jet.name,ebl_franceschini.name)
composite_model.eval()
#if plot is True:
# composite_model.plot_model()
composite_model.save_model('ebl_jet.pkl')
new_composite_model=FitModel.load_model('ebl_jet.pkl')
new_composite_model.show_pars()
v=2.0
new_composite_model.jet_flaring.parameters.z_cosm.val=v
print('new_composite_model.Franceschini_2008.parameters.z_cosm.val',new_composite_model.Franceschini_2008.parameters.z_cosm.val,'v',v)
assert (new_composite_model.Franceschini_2008.parameters.z_cosm.val == v)
assert (new_composite_model.Franceschini_2008.parameters.z_cosm.linked == True)
===> setting C threads to 12
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_flaring | R | region_size | cm | 5.000000e+15 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_flaring | R_H | region_position | cm | 1.000000e+17 | 0.000000e+00 | -- | False | True |
| jet_flaring | B | magnetic_field | gauss | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_flaring | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_flaring | beam_obj | beaming | | 1.000000e+01 | 1.000000e-04 | -- | False | False |
| jet_flaring | z_cosm | redshift | | 1.000000e-02 | 0.000000e+00 | -- | False | False |
| jet_flaring | gmin | low-energy-cut-off | lorentz-factor* | 2.000000e+00 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_flaring | gmax | high-energy-cut-off | lorentz-factor* | 1.000000e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_flaring | N | emitters_density | 1 / cm3 | 1.000000e+02 | 0.000000e+00 | -- | False | False |
| jet_flaring | gamma0_log_parab | turn-over-energy | lorentz-factor* | 1.000000e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_flaring | s | LE_spectral_slope | | 2.000000e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_flaring | r | spectral_curvature | | 4.000000e-01 | -1.500000e+01 | 1.500000e+01 | False | False |
| Franceschini_2008 | scale_factor | scale_factor | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| Franceschini_2008 | z_cosm | redshift | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
adding par: z_cosm to z_cosm
===> setting C threads to 12
adding par: z_cosm to z_cosm
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_flaring | gmin | low-energy-cut-off | lorentz-factor* | 2.000000e+00 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_flaring | gmax | high-energy-cut-off | lorentz-factor* | 1.000000e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_flaring | N | emitters_density | 1 / cm3 | 1.000000e+02 | 0.000000e+00 | -- | False | False |
| jet_flaring | gamma0_log_parab | turn-over-energy | lorentz-factor* | 1.000000e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_flaring | s | LE_spectral_slope | | 2.000000e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_flaring | r | spectral_curvature | | 4.000000e-01 | -1.500000e+01 | 1.500000e+01 | False | False |
| jet_flaring | R | region_size | cm | 5.000000e+15 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_flaring | R_H | region_position | cm | 1.000000e+17 | 0.000000e+00 | -- | False | True |
| jet_flaring | B | magnetic_field | gauss | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_flaring | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_flaring | beam_obj | beaming | | 1.000000e+01 | 1.000000e-04 | -- | False | False |
| jet_flaring | z_cosm(M) | redshift | | 3.001000e-02 | 0.000000e+00 | -- | False | False |
| Franceschini_2008 | scale_factor | scale_factor | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| Franceschini_2008 | z_cosm(L,jet_flaring) | redshift | | -- | -- | -- | False | True |
new_composite_model.Franceschini_2008.parameters.z_cosm.val 2.0 v 2.0
Example: depending pars for bkn power-law emitters
here we create a custom bkn distribution where we impose a
functional dependence among the low and high-energy spectral index.
from jetset.jet_emitters import EmittersDistribution
import numpy as np
from jetset.jet_model import Jet
j = Jet(emitters_distribution='bkn')
j.parameters
===> setting C threads to 12
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | R | region_size | cm | 5.000000e+15 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H | region_position | cm | 1.000000e+17 | 0.000000e+00 | -- | False | True |
| jet_leptonic | B | magnetic_field | gauss | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 1.000000e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 2.000000e+00 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 1.000000e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 1.000000e+02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma_break | turn-over-energy | lorentz-factor* | 1.000000e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | p | LE_spectral_slope | | 2.500000e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | p_1 | HE_spectral_slope | | 3.500000e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
the functional dependence can be provided by a python function, where
the argument (p in this case) is the same name as the parameter:
def f_p(p):
return p+1
j.make_dependent_par(par='p_1',depends_on=['p'],par_expr=f_p)
j.parameters.p.val=2
np.testing.assert_allclose(j.parameters.p_1.val, j.parameters.p.val + 1)
j.parameters
adding par: p to p_1
==> par p_1 is depending on ['p'] according to expr: p_1 =
def f_p(p):
return p+1
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | R | region_size | cm | 5.000000e+15 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H | region_position | cm | 1.000000e+17 | 0.000000e+00 | -- | False | True |
| jet_leptonic | B | magnetic_field | gauss | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 1.000000e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 2.000000e+00 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 1.000000e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 1.000000e+02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma_break | turn-over-energy | lorentz-factor* | 1.000000e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | p(M) | LE_spectral_slope | | 2.000000e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | *p_1(D,p) | HE_spectral_slope | | 3.000000e+00 | -1.000000e+01 | 1.000000e+01 | False | True |
as you can notice, now a message is shown describing the dependence of
the parameters
It is also possible to set the dependence function as a string that can
be evaluated
j.make_dependent_par(par='p_1',depends_on=['p'],par_expr='p+1')
j.parameters.p.val=2
np.testing.assert_allclose(j.parameters.p_1.val, j.parameters.p.val + 1)
j.parameters
==> par p_1 is depending on ['p'] according to expr: p_1 =
p+1
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | R | region_size | cm | 5.000000e+15 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H | region_position | cm | 1.000000e+17 | 0.000000e+00 | -- | False | True |
| jet_leptonic | B | magnetic_field | gauss | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 1.000000e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 2.000000e+00 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 1.000000e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 1.000000e+02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma_break | turn-over-energy | lorentz-factor* | 1.000000e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | p(M) | LE_spectral_slope | | 2.000000e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | *p_1(D,p) | HE_spectral_slope | | 3.000000e+00 | -1.000000e+01 | 1.000000e+01 | False | True |
In principle, you can use strings for short expressions, and functions
for more complicated formulas.
You can print the actual expression/function for the depending parameter
using the print_par_expr method:
j.parameters.p_1.par_expression_source_code
==> par p_1 is depending on ['p'] according to expr: p_1 =
p+1
j.save_model('jet.pkl')
new_jet=Jet.load_model('jet.pkl')
===> setting C threads to 12
adding par: p to p_1
==> par p_1 is depending on ['p'] according to expr: p_1 =
p+1
new_jet.parameters.p.val=2.5
np.testing.assert_allclose(new_jet.parameters.p_1.val, new_jet.parameters.p.val + 1)
new_jet.parameters
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 2.000000e+00 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 1.000000e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 1.000000e+02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma_break | turn-over-energy | lorentz-factor* | 1.000000e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | p(M) | LE_spectral_slope | | 2.500000e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | *p_1(D,p) | HE_spectral_slope | | 3.500000e+00 | -1.000000e+01 | 1.000000e+01 | False | True |
| jet_leptonic | R | region_size | cm | 5.000000e+15 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H | region_position | cm | 1.000000e+17 | 0.000000e+00 | -- | False | True |
| jet_leptonic | B | magnetic_field | gauss | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 1.000000e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 1.000000e-01 | 0.000000e+00 | -- | False | False |

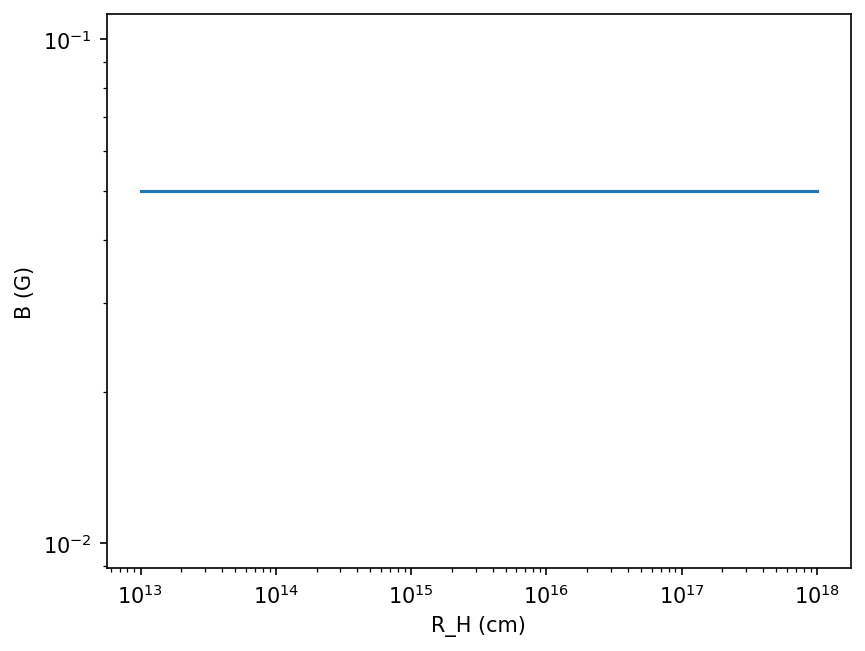

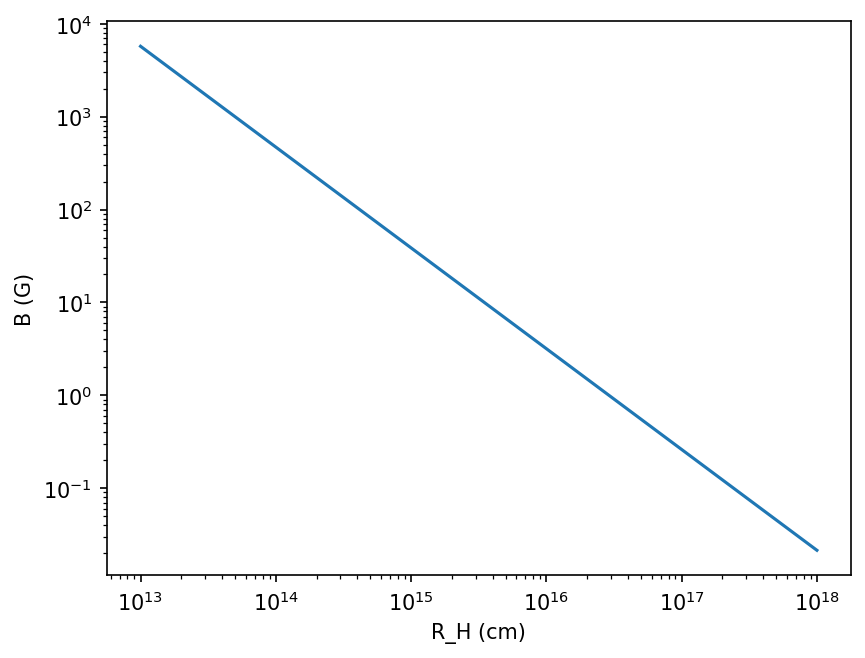

Example depending par: Building a Jet model with B function of R_H and R_0
In this example we create a fuctional dependence among the paramters
B, R_H introducing user custom pararameters. Wewant that the
value of the mangentic field in the jet is a function or R_H, and of
the initial value of B=B0 at R=R_H0, according to the
expression:
\(B=B_0(R_0/R_H)^{1.1}\)
jet=Jet(emitters_distribution='plc')
fit_model_lsb=FitModel( jet=jet, name='SSC-best-fit-lsb',template=None)
fit_model_lsb.jet_leptonic.parameters.beam_obj.fit_range = [5, 50]
fit_model_lsb.jet_leptonic.parameters.R_H.val=5E17
fit_model_lsb.jet_leptonic.parameters.R_H.frozen=False
fit_model_lsb.jet_leptonic.parameters.R_H.fit_range = [1E15, 1E19]
fit_model_lsb.jet_leptonic.parameters.R.fit_range = [10 ** 15.5, 10 ** 17.5]
fit_model_lsb.jet_leptonic.add_user_par(name='B0',units='G',val=1E3,val_min=0,val_max=None)
fit_model_lsb.jet_leptonic.add_user_par(name='R0', units='cm', val=5E13, val_min=0, val_max=None)
fit_model_lsb.jet_leptonic.add_user_par(name='m_B', val=1, val_min=1, val_max=2)
fit_model_lsb.jet_leptonic.parameters.R0.frozen=True
fit_model_lsb.jet_leptonic.parameters.B0.frozen=True
def par_func(R0,B0,R_H,m_B):
return B0*np.power((R0/R_H),m_B)
fit_model_lsb.jet_leptonic.make_dependent_par(par='B', depends_on=['B0', 'R0', 'R_H','m_B'], par_expr=par_func)
B0=fit_model_lsb.jet_leptonic.parameters.B0.val
R0 = fit_model_lsb.jet_leptonic.parameters.R0.val
R_H = fit_model_lsb.jet_leptonic.parameters.R_H.val
m_B= fit_model_lsb.jet_leptonic.parameters.m_B.val
np.testing.assert_allclose(fit_model_lsb.jet_leptonic.parameters.B.val, par_func(R0,B0,R_H,m_B))
===> setting C threads to 12
adding par: B0 to B
adding par: R0 to B
adding par: R_H to B
adding par: m_B to B
==> par B is depending on ['B0', 'R0', 'R_H', 'm_B'] according to expr: B =
def par_func(R0,B0,R_H,m_B):
return B0*np.power((R0/R_H),m_B)
fit_model_lsb.jet_leptonic.parameters
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | R | region_size | cm | 5.000000e+15 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H(M) | region_position | cm | 5.000000e+17 | 0.000000e+00 | -- | False | False |
| jet_leptonic | *B(D,m_B) | magnetic_field | gauss | 1.000000e-01 | 0.000000e+00 | -- | False | True |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 1.000000e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 2.000000e+00 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 1.000000e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 1.000000e+02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma_cut | turn-over-energy | lorentz-factor* | 1.000000e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | p | LE_spectral_slope | | 2.000000e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | B0(M) | user_defined | G | 1.000000e+03 | 0.000000e+00 | -- | False | True |
| jet_leptonic | R0(M) | user_defined | cm | 5.000000e+13 | 0.000000e+00 | -- | False | True |
| jet_leptonic | m_B(M) | user_defined | | 1.000000e+00 | 1.000000e+00 | 2.000000e+00 | False | False |
fit_model_lsb.save_model('test.pkl')
fit_model_lsb=FitModel.load_model('test.pkl')
===> setting C threads to 12
adding par: B0 to B
adding par: R0 to B
adding par: R_H to B
adding par: m_B to B
==> par B is depending on ['B0', 'R0', 'R_H', 'm_B'] according to expr: B =
def par_func(R0,B0,R_H,m_B):
return B0*np.power((R0/R_H),m_B)
B0=fit_model_lsb.jet_leptonic.parameters.B0.val
R0 = fit_model_lsb.jet_leptonic.parameters.R0.val
R_H = fit_model_lsb.jet_leptonic.parameters.R_H.val
m_B= fit_model_lsb.jet_leptonic.parameters.m_B.val
np.testing.assert_allclose(fit_model_lsb.jet_leptonic.parameters.B.val, par_func(R0,B0,R_H,m_B))
%matplotlib inline
import matplotlib.pyplot as plt
plt.figure(dpi=150)
R_H_array=np.logspace(13,18,100)
B_array=np.zeros(R_H_array.shape)
for ID,R_H in enumerate(R_H_array):
fit_model_lsb.jet_leptonic.parameters.R_H.val=R_H
B_array[ID]=fit_model_lsb.jet_leptonic.parameters.B.val
plt.loglog(R_H_array,B_array)
plt.xlabel('R_H (cm)')
plt.ylabel('B (G)')
Removing the dependenencies
for the entire fit_model
fit_model_lsb.parameters.reset_dependencies()
or, for a specific component
fit_model_lsb.jet_leptonic.parameters.reset_dependencies()
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 2.000000e+00 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 1.000000e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 1.000000e+02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma_cut | turn-over-energy | lorentz-factor* | 1.000000e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | p | LE_spectral_slope | | 2.000000e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | R | region_size | cm | 5.000000e+15 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H | region_position | cm | 1.000000e+18 | 0.000000e+00 | -- | False | False |
| jet_leptonic | B | magnetic_field | gauss | 5.000000e-02 | 0.000000e+00 | -- | False | True |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 1.000000e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 1.000000e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | B0 | user_defined | G | 1.000000e+03 | 0.000000e+00 | -- | False | True |
| jet_leptonic | R0 | user_defined | cm | 5.000000e+13 | 0.000000e+00 | -- | False | True |
| jet_leptonic | m_B | user_defined | | 1.000000e+00 | 1.000000e+00 | 2.000000e+00 | False | False |
%matplotlib inline
plt.figure(dpi=150)
R_H_array=np.logspace(13,18,100)
B_array=np.zeros(R_H_array.shape)
for ID,R_H in enumerate(R_H_array):
fit_model_lsb.jet_leptonic.parameters.R_H.val=R_H
B_array[ID]=fit_model_lsb.jet_leptonic.parameters.B.val
plt.loglog(R_H_array,B_array)
plt.xlabel('R_H (cm)')
plt.ylabel('B (G)')
Example depending par: fitting with a Jet model with depending pars
In this example we show how to use the previous model during a Fit
from jetset.test_data_helper import test_SEDs
from jetset.data_loader import ObsData,Data
from jetset.plot_sedfit import PlotSED
from jetset.test_data_helper import test_SEDs

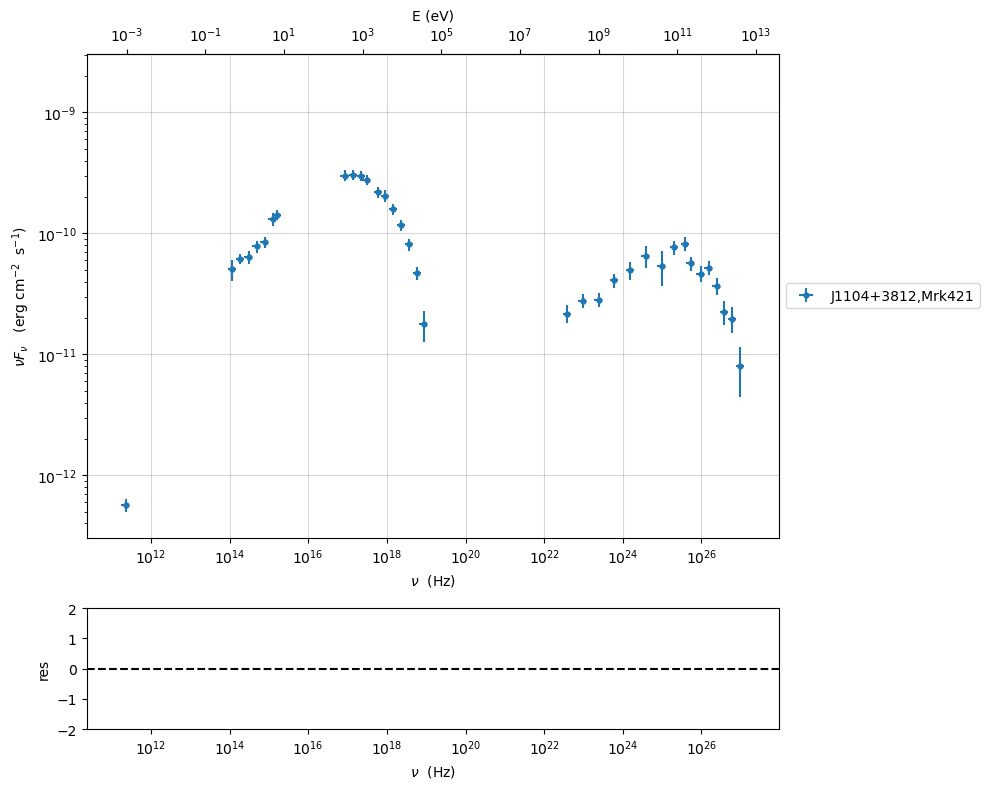

data=Data.from_file(test_SEDs[1])
sed_data=ObsData(data_table=data)
sed_data.group_data(bin_width=0.2)
sed_data.add_systematics(0.1,[10.**6,10.**29])
p=sed_data.plot_sed()
================================================================================
* binning data *
---> N bins= 89
---> bin_widht= 0.2
================================================================================

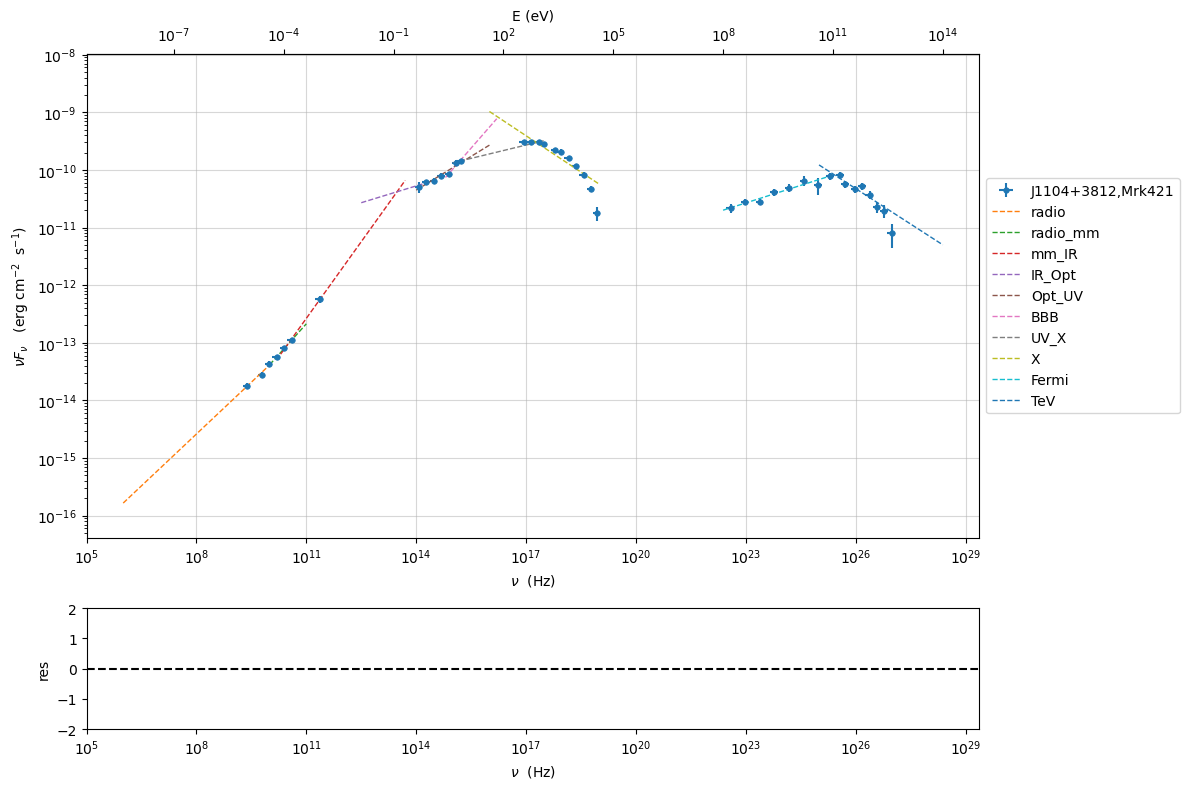

from jetset.sed_shaper import SEDShape
my_shape=SEDShape(sed_data)
my_shape.eval_indices(minimizer='lsb',silent=True)
p=my_shape.plot_indices()
================================================================================
* evaluating spectral indices for data *
================================================================================
mm,best_fit=my_shape.sync_fit(check_host_gal_template=False,
Ep_start=None,
minimizer='lsb',
silent=True,
fit_range=[10.,21.])
================================================================================
* Log-Polynomial fitting of the synchrotron component *
---> first blind fit run, fit range: [10.0, 21.0]
---> class: HSP
Table length=4
| model name | name | val | bestfit val | err + | err - | start val | fit range min | fit range max | frozen |
|---|
| LogCubic | b | -1.585748e-01 | -1.585748e-01 | 6.470535e-03 | -- | -1.000000e+00 | -1.000000e+01 | 0.000000e+00 | False |
| LogCubic | c | -1.089513e-02 | -1.089513e-02 | 9.764985e-04 | -- | -1.000000e+00 | -1.000000e+01 | 1.000000e+01 | False |
| LogCubic | Ep | 1.673177e+01 | 1.673177e+01 | 2.478677e-02 | -- | 1.667298e+01 | 0.000000e+00 | 3.000000e+01 | False |
| LogCubic | Sp | -9.489417e+00 | -9.489417e+00 | 1.853260e-02 | -- | -1.000000e+01 | -3.000000e+01 | 0.000000e+00 | False |
---> sync nu_p=+1.673177e+01 (err=+2.478677e-02) nuFnu_p=-9.489417e+00 (err=+1.853260e-02) curv.=-1.585748e-01 (err=+6.470535e-03)
================================================================================
my_shape.IC_fit(fit_range=[23.,29.],minimizer='minuit',silent=True)
p=my_shape.plot_shape_fit()
p.setlim(y_min=1E-15)
================================================================================
* Log-Polynomial fitting of the IC component *
---> fit range: [23.0, 29.0]
---> LogCubic fit
====> simplex
====> migrad
====> simplex
====> migrad
====> simplex
====> migrad
Table length=4
| model name | name | val | bestfit val | err + | err - | start val | fit range min | fit range max | frozen |
|---|
| LogCubic | b | -1.971111e-01 | -1.971111e-01 | 2.679732e-02 | -- | -1.000000e+00 | -1.000000e+01 | 0.000000e+00 | False |
| LogCubic | c | -4.037544e-02 | -4.037544e-02 | 2.119803e-02 | -- | -1.000000e+00 | -1.000000e+01 | 1.000000e+01 | False |
| LogCubic | Ep | 2.521789e+01 | 2.521789e+01 | 1.198160e-01 | -- | 2.529262e+01 | 0.000000e+00 | 3.000000e+01 | False |
| LogCubic | Sp | -1.012535e+01 | -1.012535e+01 | 2.996508e-02 | -- | -1.000000e+01 | -3.000000e+01 | 0.000000e+00 | False |
---> IC nu_p=+2.521789e+01 (err=+1.198160e-01) nuFnu_p=-1.012535e+01 (err=+2.996508e-02) curv.=-1.971111e-01 (err=+2.679732e-02)
================================================================================
from jetset.obs_constrain import ObsConstrain
from jetset.model_manager import FitModel
sed_obspar=ObsConstrain(beaming=25,
B_range=[0.001,0.1],
distr_e='lppl',
t_var_sec=3*86400,
nu_cut_IR=1E12,
SEDShape=my_shape)
prefit_jet=sed_obspar.constrain_SSC_model(electron_distribution_log_values=False,silent=True)
prefit_jet.save_model('prefit_jet.pkl')
================================================================================
* constrains parameters from observable *
===> setting C threads to 12
Table length=12
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | R | region_size | cm | 3.460321e+16 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H | region_position | cm | 1.000000e+17 | 0.000000e+00 | -- | False | True |
| jet_leptonic | B | magnetic_field | gauss | 5.050000e-02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 2.500000e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 3.080000e-02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 4.697542e+02 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 1.373160e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 6.545152e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma0_log_parab | turn-over-energy | lorentz-factor* | 3.333017e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | s | LE_spectral_slope | | 2.183468e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | r | spectral_curvature | | 7.928739e-01 | -1.500000e+01 | 1.500000e+01 | False | False |
================================================================================
from jetset.minimizer import fit_SED,ModelMinimizer
from jetset.model_manager import FitModel
from jetset.jet_model import Jet
prefit_jet=Jet.load_model('prefit_jet.pkl')
===> setting C threads to 12
fit_model=FitModel( jet=prefit_jet, name='SSC-best-fit-lsb',template=None)
fit_model.parameters
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 4.697542e+02 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 1.373160e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 6.545152e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma0_log_parab | turn-over-energy | lorentz-factor* | 3.333017e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | s | LE_spectral_slope | | 2.183468e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | r | spectral_curvature | | 7.928739e-01 | -1.500000e+01 | 1.500000e+01 | False | False |
| jet_leptonic | R | region_size | cm | 3.460321e+16 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H | region_position | cm | 1.000000e+17 | 0.000000e+00 | -- | False | True |
| jet_leptonic | B | magnetic_field | gauss | 5.050000e-02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 2.500000e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 3.080000e-02 | 0.000000e+00 | -- | False | False |
fit_model.jet_leptonic.parameters.beam_obj.fit_range = [5, 50]
fit_model.jet_leptonic.parameters.R_H.val=5E17
fit_model.jet_leptonic.parameters.R_H.frozen=False
fit_model.jet_leptonic.parameters.R_H.fit_range = [1E15, 1E19]
fit_model.jet_leptonic.parameters.R.fit_range = [10 ** 15.5, 10 ** 17.5]
fit_model.jet_leptonic.parameters.gamma0_log_parab.fit_range = [1E3,1E6]
fit_model.jet_leptonic.parameters.gmin.fit_range = [10,1000]
fit_model.jet_leptonic.parameters.gmax.fit_range = [1E5,1E8]
fit_model.jet_leptonic.add_user_par(name='B0',units='G',val=1E3,val_min=0,val_max=None)
fit_model.jet_leptonic.add_user_par(name='R0', units='cm', val=5E13, val_min=0, val_max=None)
fit_model.jet_leptonic.add_user_par(name='m_B', val=1, val_min=1, val_max=2)
fit_model.jet_leptonic.parameters.R0.frozen=True
fit_model.jet_leptonic.parameters.B0.frozen=True
def par_func(R0,B0,R_H,m_B):
return B0*np.power((R0/R_H),m_B)
fit_model.jet_leptonic.make_dependent_par(par='B', depends_on=['B0', 'R0', 'R_H','m_B'], par_expr=par_func)
fit_model.parameters
adding par: B0 to B
adding par: R0 to B
adding par: R_H to B
adding par: m_B to B
==> par B is depending on ['B0', 'R0', 'R_H', 'm_B'] according to expr: B =
def par_func(R0,B0,R_H,m_B):
return B0*np.power((R0/R_H),m_B)
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 4.697542e+02 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 1.373160e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 6.545152e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma0_log_parab | turn-over-energy | lorentz-factor* | 3.333017e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | s | LE_spectral_slope | | 2.183468e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | r | spectral_curvature | | 7.928739e-01 | -1.500000e+01 | 1.500000e+01 | False | False |
| jet_leptonic | R | region_size | cm | 3.460321e+16 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H(M) | region_position | cm | 5.000000e+17 | 0.000000e+00 | -- | False | False |
| jet_leptonic | *B(D,m_B) | magnetic_field | gauss | 1.000000e-01 | 0.000000e+00 | -- | False | True |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 2.500000e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 3.080000e-02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | B0(M) | user_defined | G | 1.000000e+03 | 0.000000e+00 | -- | False | True |
| jet_leptonic | R0(M) | user_defined | cm | 5.000000e+13 | 0.000000e+00 | -- | False | True |
| jet_leptonic | m_B(M) | user_defined | | 1.000000e+00 | 1.000000e+00 | 2.000000e+00 | False | False |
%matplotlib inline
plt.figure(dpi=150)
R_H_array=np.logspace(13,18,100)
B_array=np.zeros(R_H_array.shape)
for ID,R_H in enumerate(R_H_array):
fit_model.jet_leptonic.parameters.R_H.val=R_H
B_array[ID]=fit_model.jet_leptonic.parameters.B.val
plt.loglog(R_H_array,B_array)
plt.xlabel('R_H (cm)')
plt.ylabel('B (G)')
fit_model.jet_leptonic.parameters.R_H.val=5E17
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 4.697542e+02 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 1.373160e+06 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 6.545152e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma0_log_parab | turn-over-energy | lorentz-factor* | 3.333017e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | s | LE_spectral_slope | | 2.183468e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | r | spectral_curvature | | 7.928739e-01 | -1.500000e+01 | 1.500000e+01 | False | False |
| jet_leptonic | R | region_size | cm | 3.460321e+16 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H(M) | region_position | cm | 5.000000e+17 | 0.000000e+00 | -- | False | False |
| jet_leptonic | *B(D,m_B) | magnetic_field | gauss | 1.000000e-01 | 0.000000e+00 | -- | False | True |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 2.500000e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 3.080000e-02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | B0(M) | user_defined | G | 1.000000e+03 | 0.000000e+00 | -- | False | True |
| jet_leptonic | R0(M) | user_defined | cm | 5.000000e+13 | 0.000000e+00 | -- | False | True |
| jet_leptonic | m_B(M) | user_defined | | 1.000000e+00 | 1.000000e+00 | 2.000000e+00 | False | False |
As a resuslt of the best fit modeling, we are able to determine the
value of R_H. We now perform the fit with minuit to get a better
estimate of the errors
model_minimizer_minuit=ModelMinimizer('minuit')
model_minimizer_minuit.minimizer.add_simplex=False
best_fit_minuit=model_minimizer_minuit.fit(fit_model,
sed_data,
1E11,
1E29,
fitname='SSC-best-fit-minuit',
repeat=3)
filtering data in fit range = [1.000000e+11,1.000000e+29]
data length 35
================================================================================
* start fit process *
-----
fit run: 0
====> migrad
- best chisq=3.30494e+01
fit run: 1
- old chisq=3.30494e+01
====> migrad
- best chisq=2.21161e+01
fit run: 2
- old chisq=2.21161e+01
====> migrad
- best chisq=2.01970e+01
-------------------------------------------------------------------------
Fit report
Model: SSC-best-fit-minuit
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 5.955908e+02 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 7.336491e+05 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 7.078650e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma0_log_parab | turn-over-energy | lorentz-factor* | 3.225336e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | s | LE_spectral_slope | | 2.232280e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | r | spectral_curvature | | 6.488585e-01 | -1.500000e+01 | 1.500000e+01 | False | False |
| jet_leptonic | R | region_size | cm | 2.940961e+16 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H(M) | region_position | cm | 4.786191e+17 | 0.000000e+00 | -- | False | False |
| jet_leptonic | *B(D,m_B) | magnetic_field | gauss | 4.766679e-02 | 0.000000e+00 | -- | False | True |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 3.726640e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 5.799018e-02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | B0(M) | user_defined | G | 1.000000e+03 | 0.000000e+00 | -- | False | True |
| jet_leptonic | R0(M) | user_defined | cm | 5.000000e+13 | 0.000000e+00 | -- | False | True |
| jet_leptonic | m_B(M) | user_defined | | 1.085597e+00 | 1.000000e+00 | 2.000000e+00 | False | False |
converged=True
calls=4803
mesg=
| Migrad |
| FCN = 20.2 |
Nfcn = 4803 |
| EDM = 3.32e-07 (Goal: 0.0002) |
time = 81.2 sec |
| Valid Minimum |
No Parameters at limit |
| Below EDM threshold (goal x 10) |
Below call limit |
| Covariance |
Hesse ok |
Accurate |
Pos. def. |
Not forced |
|
Name |
Value |
Hesse Error |
Minos Error- |
Minos Error+ |
Limit- |
Limit+ |
Fixed |
| 0 |
par_0 |
595.6 |
1.1 |
|
|
10 |
1E+03 |
|
| 1 |
par_1 |
733.6e3 |
0.5e3 |
|
|
1E+05 |
1E+08 |
|
| 2 |
par_2 |
707.865e-3 |
0.010e-3 |
|
|
0 |
|
|
| 3 |
par_3 |
32.2534e3 |
0.0022e3 |
|
|
1E+03 |
1E+06 |
|
| 4 |
par_4 |
2.232280 |
0.000023 |
|
|
-10 |
10 |
|
| 5 |
par_5 |
648.86e-3 |
0.26e-3 |
|
|
-15 |
15 |
|
| 6 |
par_6 |
29.4096e15 |
0.0012e15 |
|
|
3.16E+15 |
3.16E+17 |
|
| 7 |
par_7 |
478.619e15 |
0.027e15 |
|
|
1E+15 |
1E+19 |
|
| 8 |
par_8 |
37.26640 |
0.00024 |
|
|
5 |
50 |
|
| 9 |
par_9 |
57.9902e-3 |
0.0034e-3 |
|
|
0 |
|
|
| 10 |
par_10 |
1.0855972 |
0.0000033 |
|
|
1 |
2 |
|
dof=24
chisq=20.196967, chisq/red=0.841540 null hypothesis sig=0.685522
best fit pars
| model name | name | val | bestfit val | err + | err - | start val | fit range min | fit range max | frozen |
|---|
| jet_leptonic | gmin | 5.955908e+02 | 5.955908e+02 | 1.099191e+00 | -- | 4.697542e+02 | 1.000000e+01 | 1.000000e+03 | False |
| jet_leptonic | gmax | 7.336491e+05 | 7.336491e+05 | 5.239237e+02 | -- | 1.373160e+06 | 1.000000e+05 | 1.000000e+08 | False |
| jet_leptonic | N | 7.078650e-01 | 7.078650e-01 | 1.030217e-05 | -- | 6.545152e-01 | 0.000000e+00 | -- | False |
| jet_leptonic | gamma0_log_parab | 3.225336e+04 | 3.225336e+04 | 2.156816e+00 | -- | 3.333017e+04 | 1.000000e+03 | 1.000000e+06 | False |
| jet_leptonic | s | 2.232280e+00 | 2.232280e+00 | 2.282556e-05 | -- | 2.183468e+00 | -1.000000e+01 | 1.000000e+01 | False |
| jet_leptonic | r | 6.488585e-01 | 6.488585e-01 | 2.582949e-04 | -- | 7.928739e-01 | -1.500000e+01 | 1.500000e+01 | False |
| jet_leptonic | R | 2.940961e+16 | 2.940961e+16 | 1.250211e+12 | -- | 3.460321e+16 | 3.162278e+15 | 3.162278e+17 | False |
| jet_leptonic | R_H(M) | 4.786191e+17 | 4.786191e+17 | 2.668558e+13 | -- | 5.000000e+17 | 1.000000e+15 | 1.000000e+19 | False |
| jet_leptonic | *B(D,m_B) | 4.766679e-02 | -- | -- | -- | 1.000000e-01 | 0.000000e+00 | -- | True |
| jet_leptonic | NH_cold_to_rel_e | 1.000000e+00 | -- | -- | -- | 1.000000e+00 | 0.000000e+00 | -- | True |
| jet_leptonic | beam_obj | 3.726640e+01 | 3.726640e+01 | 2.449689e-04 | -- | 2.500000e+01 | 5.000000e+00 | 5.000000e+01 | False |
| jet_leptonic | z_cosm | 5.799018e-02 | 5.799018e-02 | 3.432852e-06 | -- | 3.080000e-02 | 0.000000e+00 | -- | False |
| jet_leptonic | B0(M) | 1.000000e+03 | -- | -- | -- | 1.000000e+03 | 0.000000e+00 | -- | True |
| jet_leptonic | R0(M) | 5.000000e+13 | -- | -- | -- | 5.000000e+13 | 0.000000e+00 | -- | True |
| jet_leptonic | m_B(M) | 1.085597e+00 | 1.085597e+00 | 3.331357e-06 | -- | 1.000000e+00 | 1.000000e+00 | 2.000000e+00 | False |
-------------------------------------------------------------------------
================================================================================

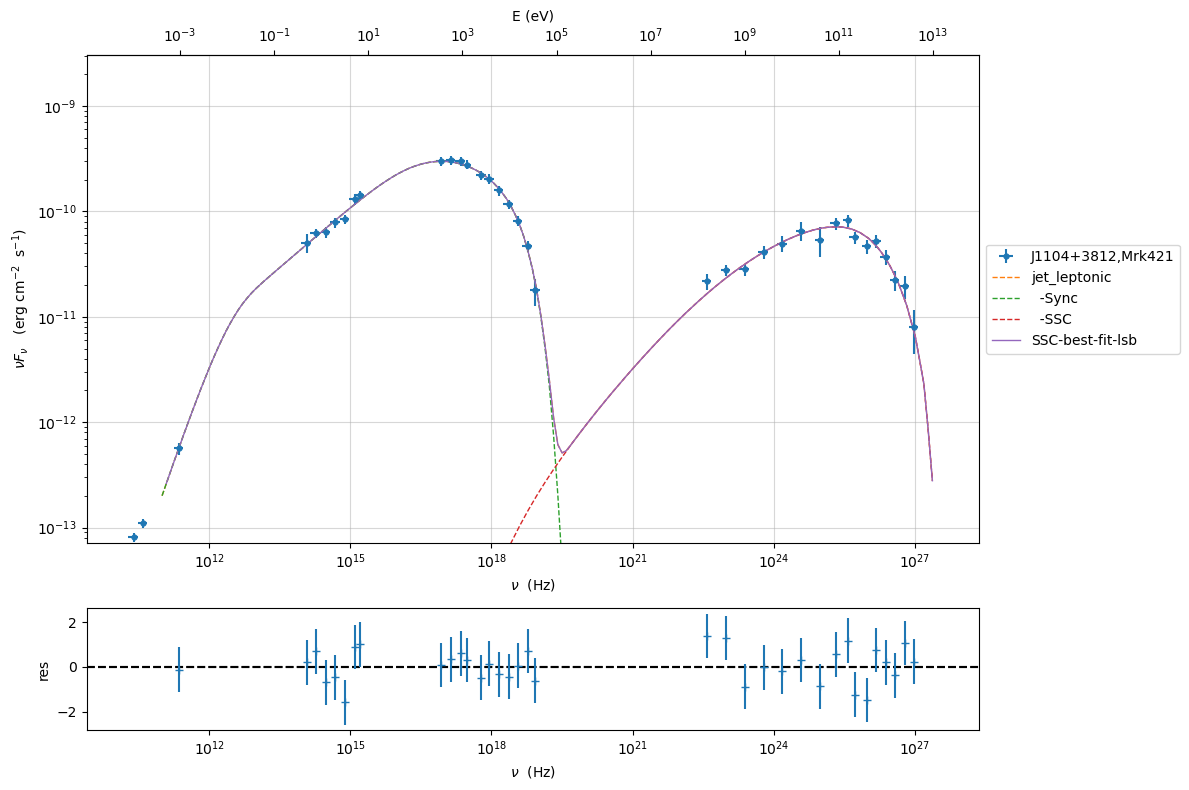

fit_model.plot_model(sed_data=sed_data)
<jetset.plot_sedfit.PlotSED at 0x158f65750>
%matplotlib inline
plt.figure(dpi=150)
R_H_array=np.logspace(13,18,100)
B_array=np.zeros(R_H_array.shape)
for ID,R_H in enumerate(R_H_array):
fit_model.jet_leptonic.parameters.R_H.val=R_H
B_array[ID]=fit_model.jet_leptonic.parameters.B.val
plt.loglog(R_H_array,B_array)
plt.xlabel('R_H (cm)')
plt.ylabel('B (G)')
fit_model.save_model('test.pkl')
from jetset.model_manager import FitModel
new_fit_model=FitModel.load_model('test.pkl')
===> setting C threads to 12
adding par: B0 to B
adding par: R0 to B
adding par: R_H to B
adding par: m_B to B
==> par B is depending on ['B0', 'R0', 'R_H', 'm_B'] according to expr: B =
def par_func(R0,B0,R_H,m_B):
return B0*np.power((R0/R_H),m_B)
| model name | name | par type | units | val | phys. bound. min | phys. bound. max | log | frozen |
|---|
| jet_leptonic | gmin | low-energy-cut-off | lorentz-factor* | 5.955908e+02 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | gmax | high-energy-cut-off | lorentz-factor* | 7.336491e+05 | 1.000000e+00 | 1.000000e+15 | False | False |
| jet_leptonic | N | emitters_density | 1 / cm3 | 7.078650e-01 | 0.000000e+00 | -- | False | False |
| jet_leptonic | gamma0_log_parab | turn-over-energy | lorentz-factor* | 3.225336e+04 | 1.000000e+00 | 1.000000e+09 | False | False |
| jet_leptonic | s | LE_spectral_slope | | 2.232280e+00 | -1.000000e+01 | 1.000000e+01 | False | False |
| jet_leptonic | r | spectral_curvature | | 6.488585e-01 | -1.500000e+01 | 1.500000e+01 | False | False |
| jet_leptonic | R | region_size | cm | 2.940961e+16 | 1.000000e+03 | 1.000000e+30 | False | False |
| jet_leptonic | R_H(M) | region_position | cm | 1.000000e+18 | 0.000000e+00 | -- | False | False |
| jet_leptonic | *B(D,m_B) | magnetic_field | gauss | 2.141973e-02 | 0.000000e+00 | -- | False | True |
| jet_leptonic | NH_cold_to_rel_e | cold_p_to_rel_e_ratio | | 1.000000e+00 | 0.000000e+00 | -- | False | True |
| jet_leptonic | beam_obj | beaming | | 3.726640e+01 | 1.000000e-04 | -- | False | False |
| jet_leptonic | z_cosm | redshift | | 5.799018e-02 | 0.000000e+00 | -- | False | False |
| jet_leptonic | B0(M) | user_defined | G | 1.000000e+03 | 0.000000e+00 | -- | False | True |
| jet_leptonic | R0(M) | user_defined | cm | 5.000000e+13 | 0.000000e+00 | -- | False | True |
| jet_leptonic | m_B(M) | user_defined | | 1.085597e+00 | 1.000000e+00 | 2.000000e+00 | False | False |
